Pump truck double-layer arm pipe KKR 10106

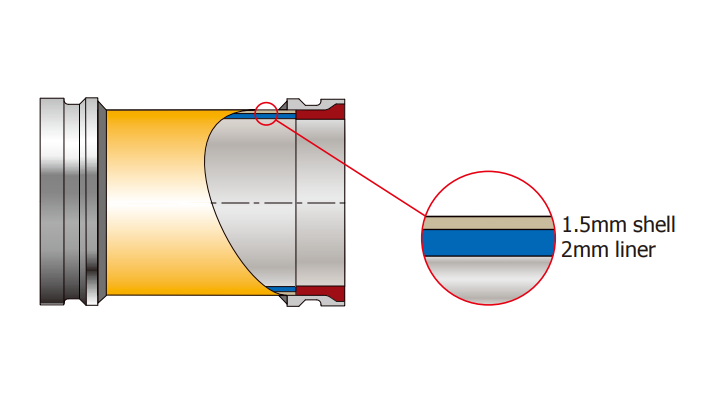

Our DN117 double-layer straight pipe has a 2mm wear-resistant layer and a 1.5mm protective layer. The carbide chromium flanges at both ends protect the pipe fittings from excessive impact.
-
Production Workshop
Installation location： Arm bracket tube Type: Double layer high-frequency induction hardening Inner diameter: 117mm Outer diameter: 124mm Wall thickness: 3.5mm(2mm+1.5mm) Hardness: 65HRC Work pressure: 85bar Net weight of pipe： 10.4kg/m
