Pump truck single-layer quenched arm pipe KKR 10109

Our KKR10109 system is a single-walled pipeline that has undergone induction hardening treatment. It utilizes chromium carbide welded ends to enhance the pipeline end protection performance. The 10109 system is most suitable for use with cast manganese elbows, backend components, and hardened steel pressure reducers.
  • Production Workshop



    Installation location:Arm bracket tube

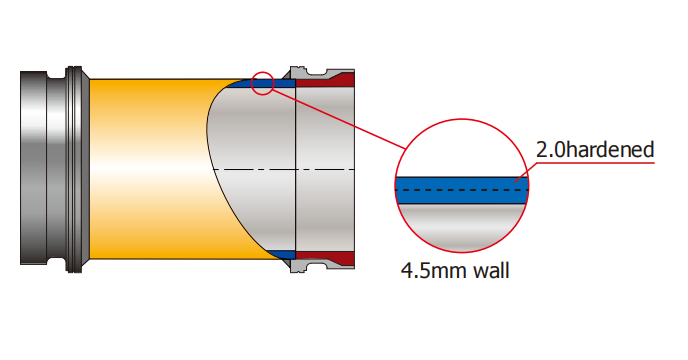

    Type:Single layer high-frequency induction hardening
    Inner diameter:124mm
    Outer diameter:133mm
    Wall thickness:4.5mm
    Hardness: 60HRC
    Work pressure:85bar
    Net weight of pipe:14.2kg/m
